Spec.

Series name Let ’s note
Model number CF-NX4GDJCS
Attached display Screen size 12.1 inches
Display specifications (16: 9) TFT color, HD +, 1600 x 900 (16.77 million colors)
CPU Core i3 5010U
CPU clock 2.1GHz
Standard memory capacity 4G
Maximum memory capacity 8G
Memory onboard capacity 4G
Memory type 204-pin DDR3L SDRAM PC3L-12800 SO-DIMM
Number of memory slots 1
Number of empty memory slots 1
Memory_expansion unit 1
Internal SSD capacity 120G
Graphic controller name Intel HD Graphics 5500
Graphic controller mounting form Built in CPU
VRAM capacity up to 1565MB (shared with main memory)
TV tuner ×
Wired LAN 1000BASE-T / 100BASE-TX / 10BASE-T
Wireless LAN / Others IEEE802.11a / b / g / n / ac wireless LAN, Bluetooth4.0
Display connection method Mini D-Sub 15 pin x 1, HDMI x 1
USB port USB3.0 x 2 (left side), USB2.0 x 1 (right side)
External dimensions Width (mm) 295mm
External dimensions Depth (mm) 197.5mm
External dimensions Height (mm) 25.4mm
Body announcement date 2015/01/15

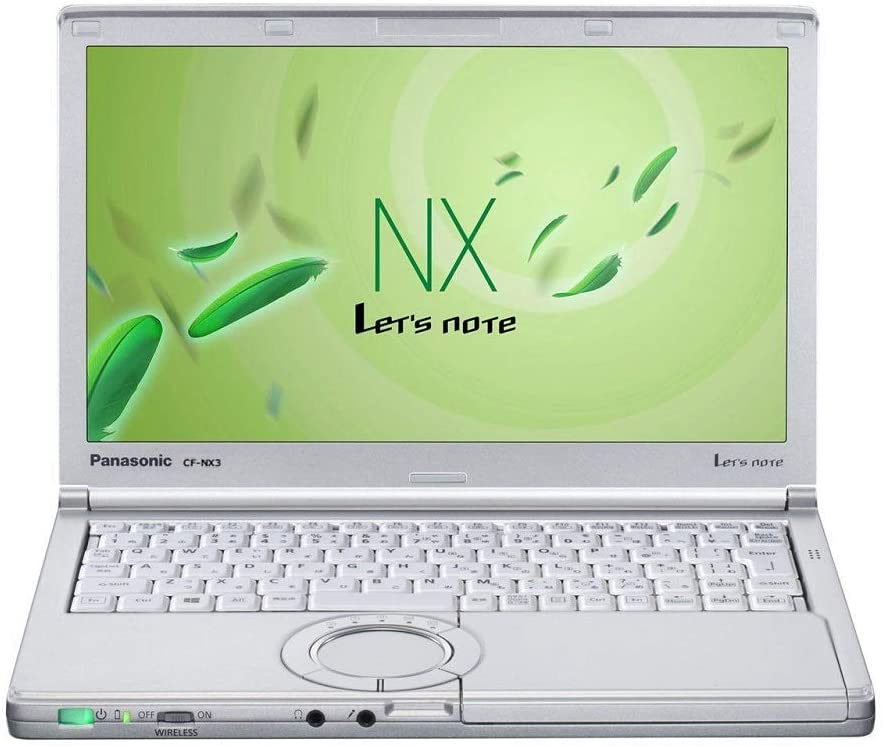

添付ファイル: fileCF-NX4GDJCS.jpg 151件 [詳細]
