大きめのファイルなどを起動するときに、なにも返答がないのは、不安ですね。ここで、CPU Usageなどを表示するconkyを入れました。
基本的に、「FMV-670MC Conkyの自動起動登録と背景ブラックアウトの対処」に沿ってできました。
Conkyはパピーパッケージマネージャから、conky_1.8.1-6をインストールしました。
ここで、
/root/.conkyrcは以下の内容です（conky1.6.1からのものです。）
# torsmo configuration
# set to yes if you want tormo to be forked in the background
background yes
# X font used, you can pick one with program xfontsel
#font 5x7
#font 6x10
#font 7x13
#font 8x13
#font 9x15
font fixed
# font *mintsmild.se*
# font -*-*-*-*-*-*-34-*-*-*-*-*-*-*
# mail spool
# mail_spool $MAIL
# Create own window instead of using desktop (required in nautilus)
own_window yes
# If own_window is yes, you may use type normal, desktop or override
own_window_type desktop
# If own_window is yes, these window manager hints may be used
own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager
# Use pseudo transparency with own_window?
own_window_transparent yes
# If own_window_transparent is set to no, you can set the background colour here
own_window_colour hotpink
# Use double buffering (reduces flicker, may not work for everyone)
double_buffer yes
# This is the number of times Conky will update before quitting.
# Set to zero to run forever.
total_run_times 0
# Update interval in seconds
update_interval 5.0
# Minimum size of text area
minimum_size 160 5
# Draw shades?
draw_shades yes
# Draw outlines?
draw_outline no
# Draw borders around text
draw_borders no
# Stippled borders?
stippled_borders 2
# border margins
border_margin 4
# border width
border_width 1
# Default colors and also border colors
default_color white
default_shade_color black
default_outline_color red
# Text alignment, other possible values are commented
#alignment top_left
#alignment top_right
#alignment bottom_left
#alignment bottom_right
alignment middle_right
# Gap between borders of screen and text
gap_x 12
gap_y 12
# Subtract file system buffers from used memory?
no_buffers yes
# set to yes if you want all text to be in uppercase
uppercase no
# Add spaces to keep things from moving about? This only affects certain objects.
use_spacer none
# Possible variables to be used:
#
# Variable Arguments Description
# acpiacadapter ACPI ac adapter state.
# acpifan ACPI fan state
# acpitemp ACPI temperature.
# battery (num) Remaining capasity in ACPI or APM
# battery. ACPI battery number can be
# given as argument (default is BAT0).
# buffers Amount of memory buffered
# cached Amount of memory cached
# color (color) Change drawing color to color
# cpu CPU usage in percents
# cpubar (height) Bar that shows CPU usage, height is
# bar's height in pixels
# downspeed net Download speed in kilobytes
# downspeedf net Download speed in kilobytes with one
# decimal
# exec shell command Executes a shell command and displays
# the output in torsmo. warning: this
# takes a lot more resources than other
# variables. I'd recommend coding wanted
# behaviour in C and posting a patch :-).
# execi interval, shell Same as exec but with specific interval.
# command Interval can't be less than
# update_interval in configuration.
# fs_bar (height), (fs) Bar that shows how much space is used on
# a file system. height is the height in
# pixels. fs is any file on that file
# system.
# fs_free (fs) Free space on a file system available
# for users.
# fs_free_perc (fs) Free percentage of space on a file
# system available for users.
# fs_size (fs) File system size
# fs_used (fs) File system used space
# hr (height) Horizontal line, height is the height in
# pixels
# i2c (dev), type, n I2C sensor from sysfs (Linux 2.6). dev
# may be omitted if you have only one I2C
# device. type is either in (or vol)
# meaning voltage, fan meaning fan or temp
# meaning temperature. n is number of the
# sensor. See /sys/bus/i2c/devices/ on
# your local computer.
# kernel Kernel version
# loadavg (1), (2), (3) System load average, 1 is for past 1
# minute, 2 for past 5 minutes and 3 for
# past 15 minutes.
# machine Machine, i686 for example
# mails Mail count in mail spool. You can use
# program like fetchmail to get mails from
# some server using your favourite
# protocol. See also new_mails.
# mem Amount of memory in use
# membar (height) Bar that shows amount of memory in use
# memmax Total amount of memory
# memperc Percentage of memory in use
# new_mails Unread mail count in mail spool.
# nodename Hostname
# outlinecolor (color) Change outline color
# pre_exec shell command Executes a shell command one time before
# torsmo displays anything and puts output
# as text.
# processes Total processes (sleeping and running)
# running_processes Running processes (not sleeping),
# requires Linux 2.6
# shadecolor (color) Change shading color
# stippled_hr (space), Stippled (dashed) horizontal line
# (height)
# swapbar (height) Bar that shows amount of swap in use
# swap Amount of swap in use
# swapmax Total amount of swap
# swapperc Percentage of swap in use
# sysname System name, Linux for example
# temp1 Temperature #1 from i2c-sensors, same as
# ${i2c temp 1}
# temp2 Temperature #2 from i2c-sensors, same as
# ${i2c temp 2}
# time (format) Local time, see man strftime to get more
# information about format
# totaldown net Total download, overflows at 4 GB on
# Linux with 32-bit arch and there doesn't
# seem to be a way to know how many times
# it has already done that before torsmo
# has started.
# totalup net Total upload, this one too, may overflow
# updates Number of updates (for debugging)
# upspeed net Upload speed in kilobytes
# upspeedf net Upload speed in kilobytes with one
# decimal
# uptime Uptime
# uptime_short Uptime in a shorter format
# variable is given either in format $variable or in ${variable}. Latter
# allows characters right after the variable and must be used in network
# stuff because of an argument
# stuff after 'TEXT' will be formatted on screen
TEXT
Up:$color ${upspeed eth0} k/s${color grey} - Down:$color ${downspeed eth0} k/s
${color blue}$hr
${color grey}Processes:$color $processes
${color grey}CPU Usage:$color $cpu%
${color grey}${cpubar 3}
${color grey}RAM Usage:$color $mem/$memmax - $memperc%
${color grey}${membar 3}
${color grey}Swap Used:$color $swap/$swapmax - $swapperc%
${color grey}${swapbar 3}
${color grey}File systems:
/ $color${fs_free /}/${fs_size /}
${color grey}${fs_bar 3 /}
${color red}$hr
${color grey}Uptime: $color $uptime
# ${color #ddd}Battery: $color ${battery}
${color green}$hr$color
$sysname $kernel on $machine
${color grey}Host: $color$nodename ${execi 180 ~/.conky_ip}
つぎに、背景の描画の用意ですが、
PuppyパッケージマネージャーでImageMagickをインストールしました。
/root/Startup
にスタートアップのファイル、Conky_startを以下の内容で用意します。
#!/bin/sh display -window root /usr/share/backgrounds/moeppy-yellow-wall.png conky
moeppy-yellow-wall.pngのところに、自分の背景をいれます。
そして、chmod +x Conky_startで属性を整えておきます。

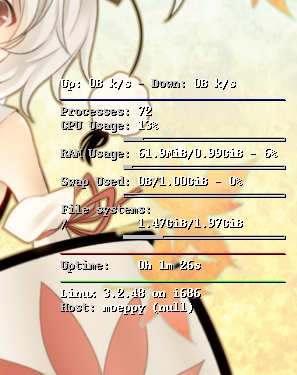

これで背景を透過する、CPU Usageなどが表示されると思います。
